Homeowner/Landowner Zero Turn Mowers

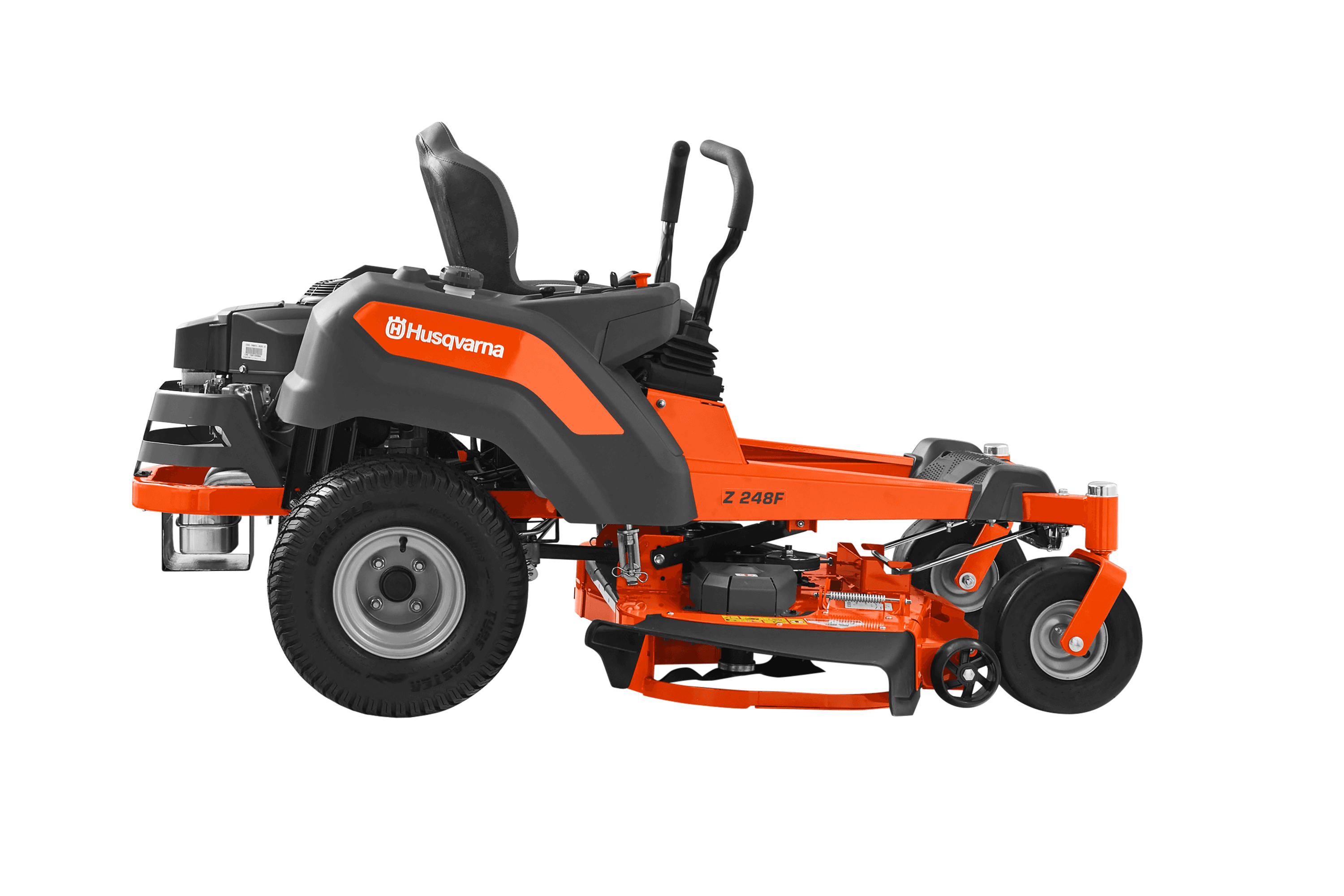

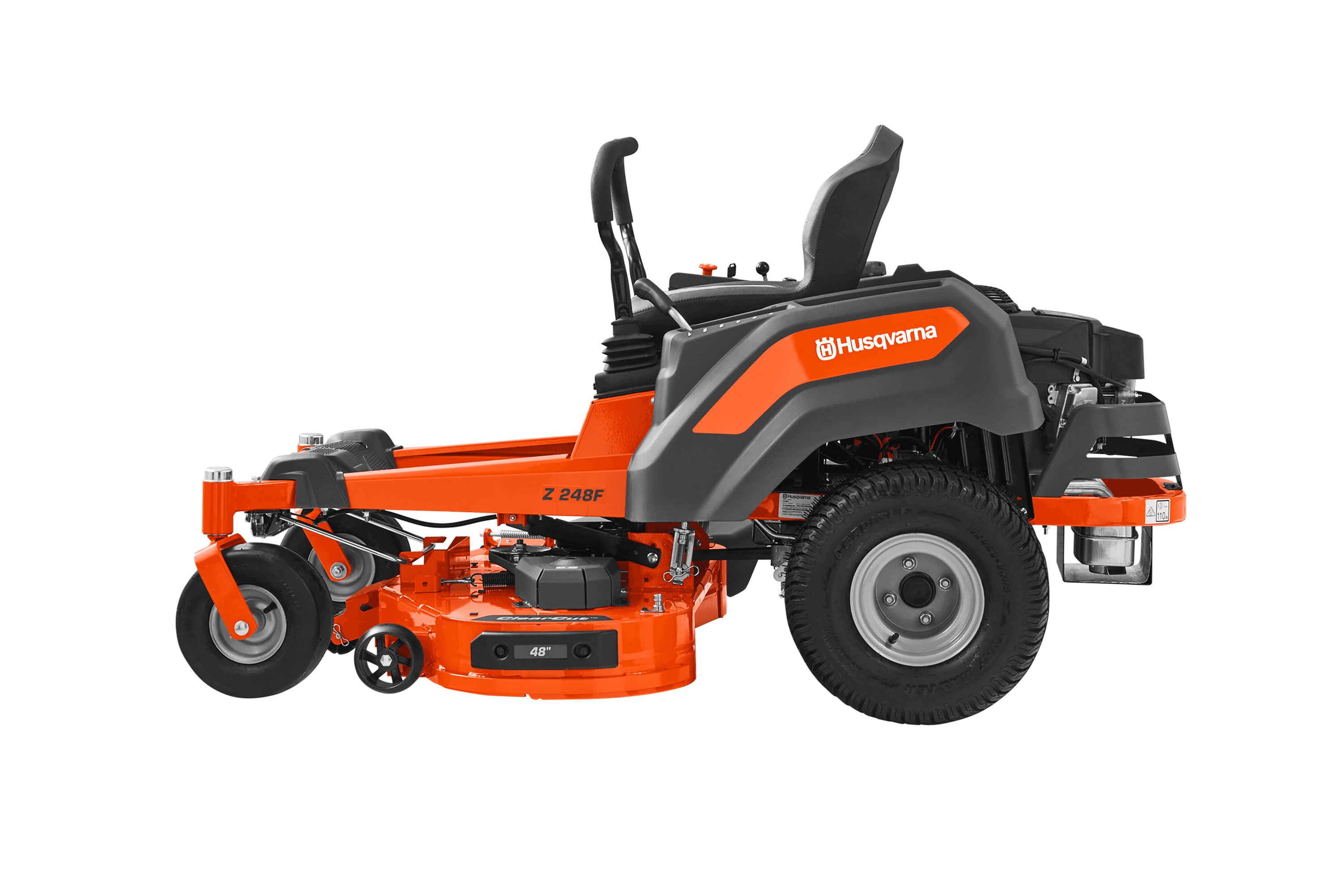

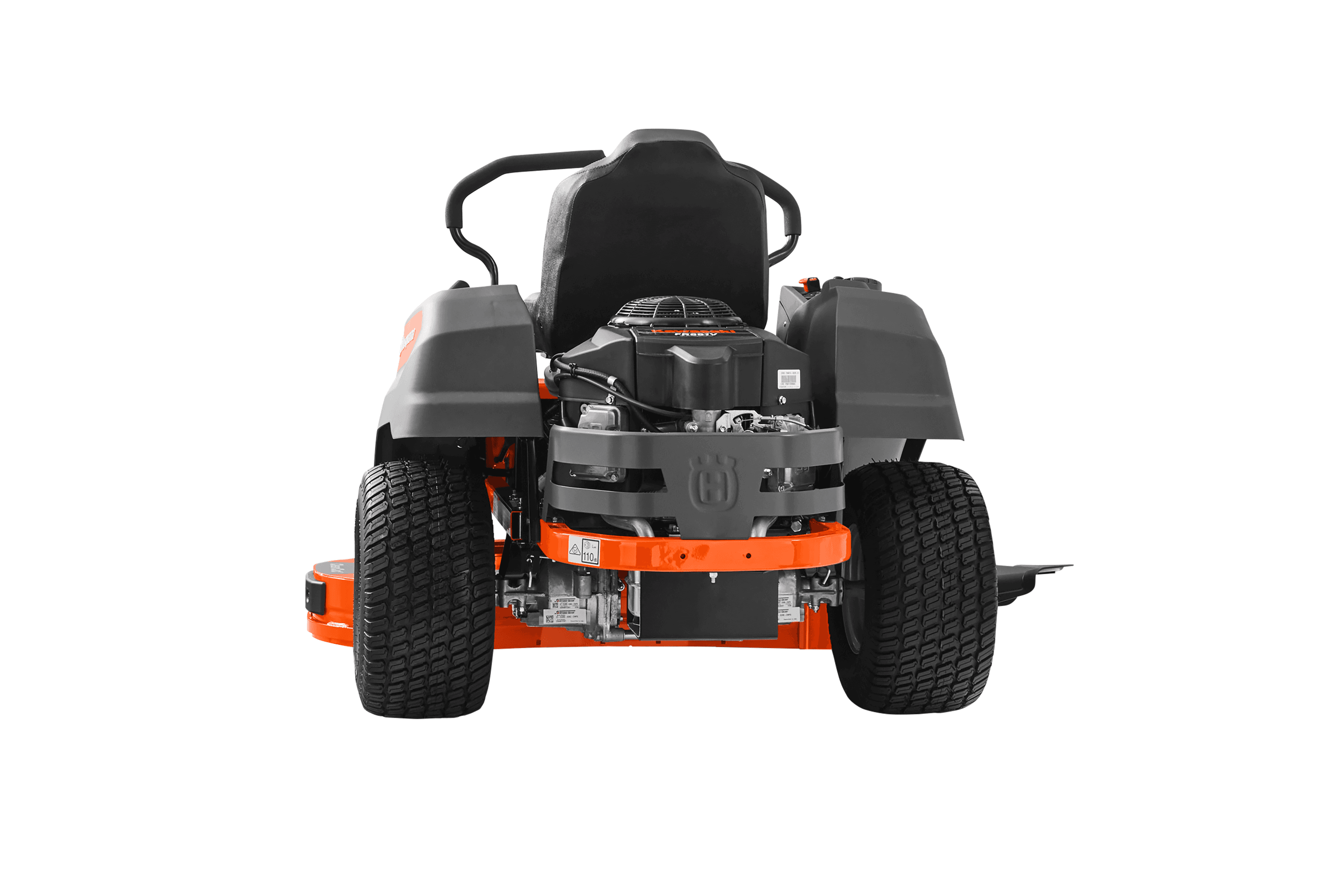

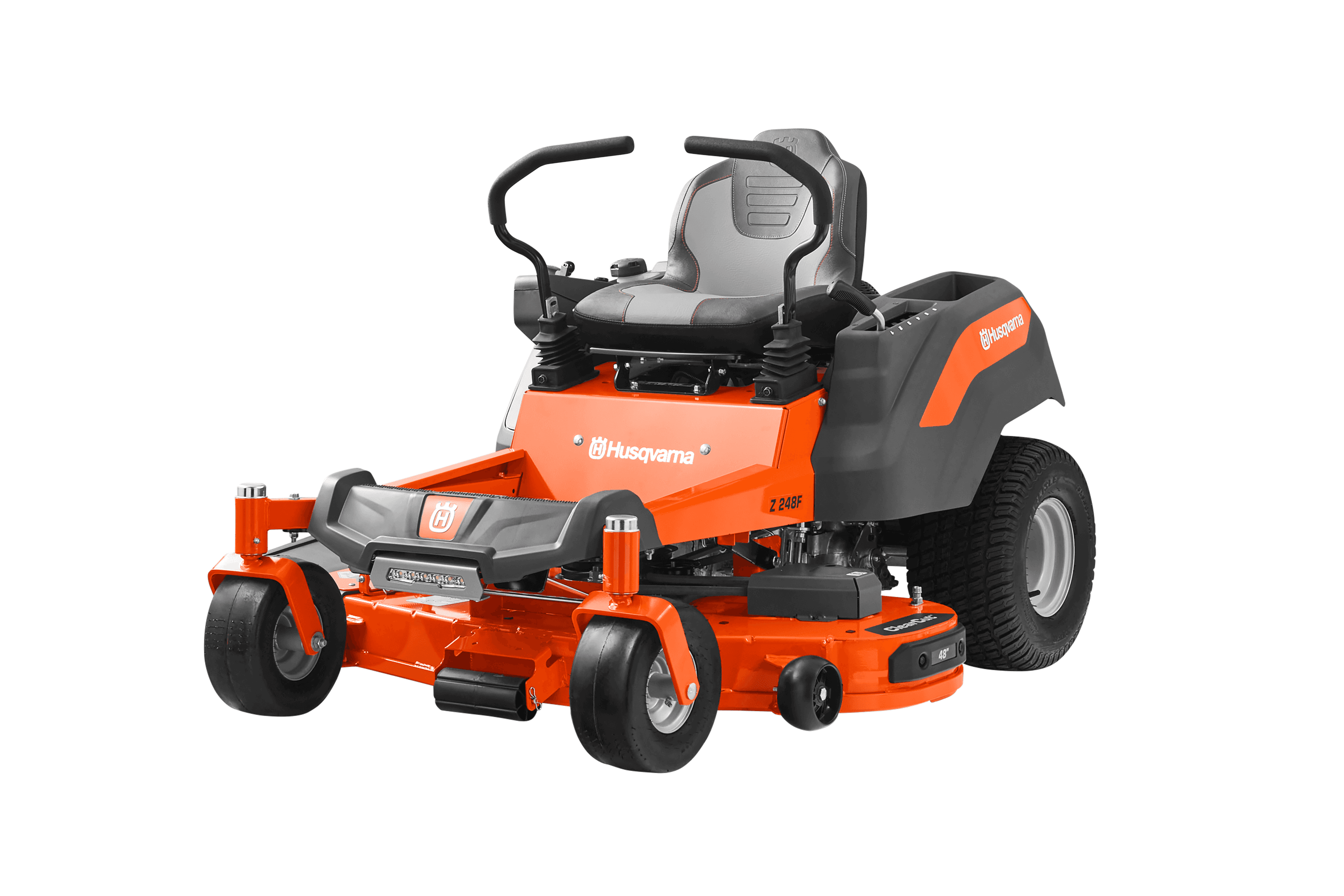

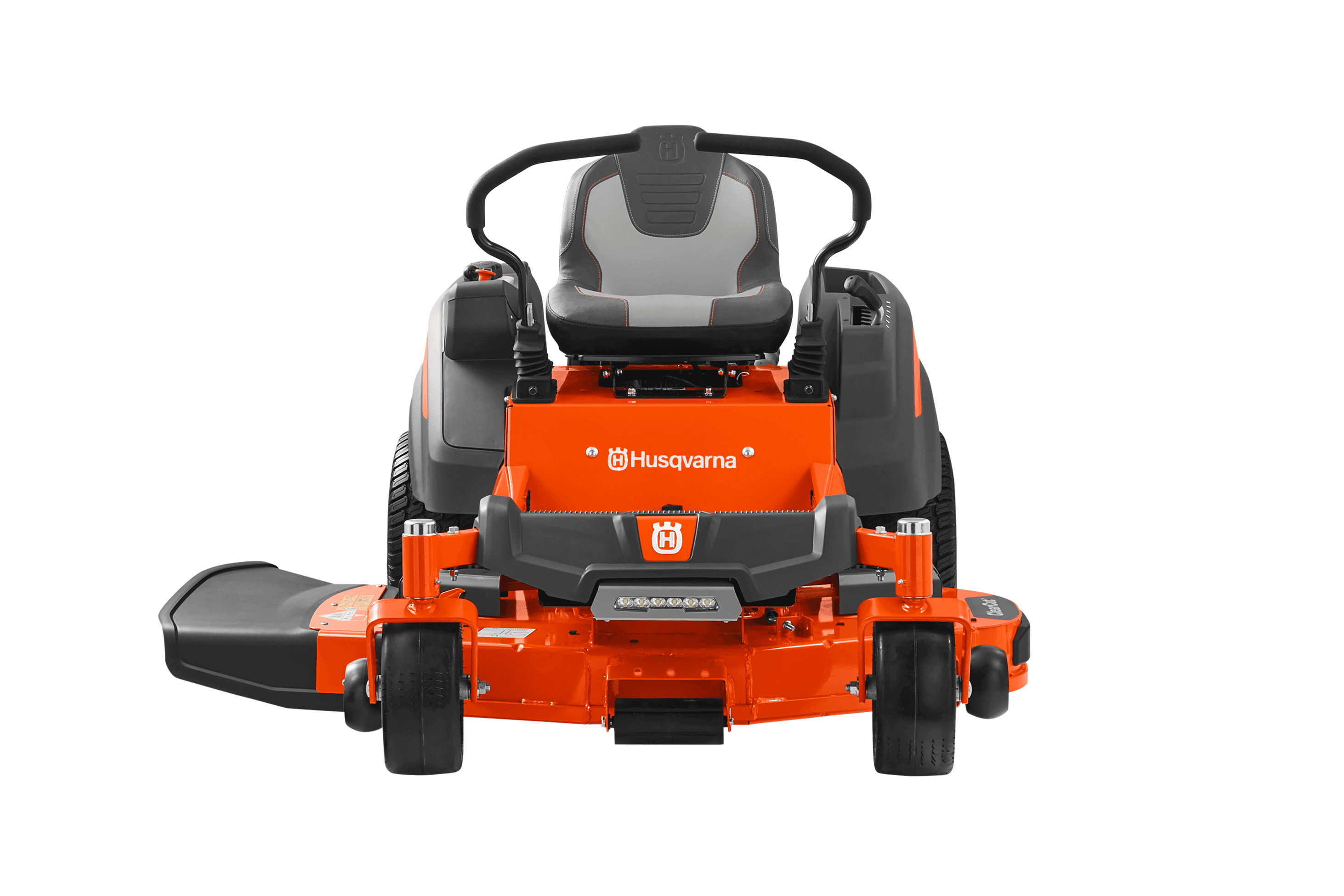

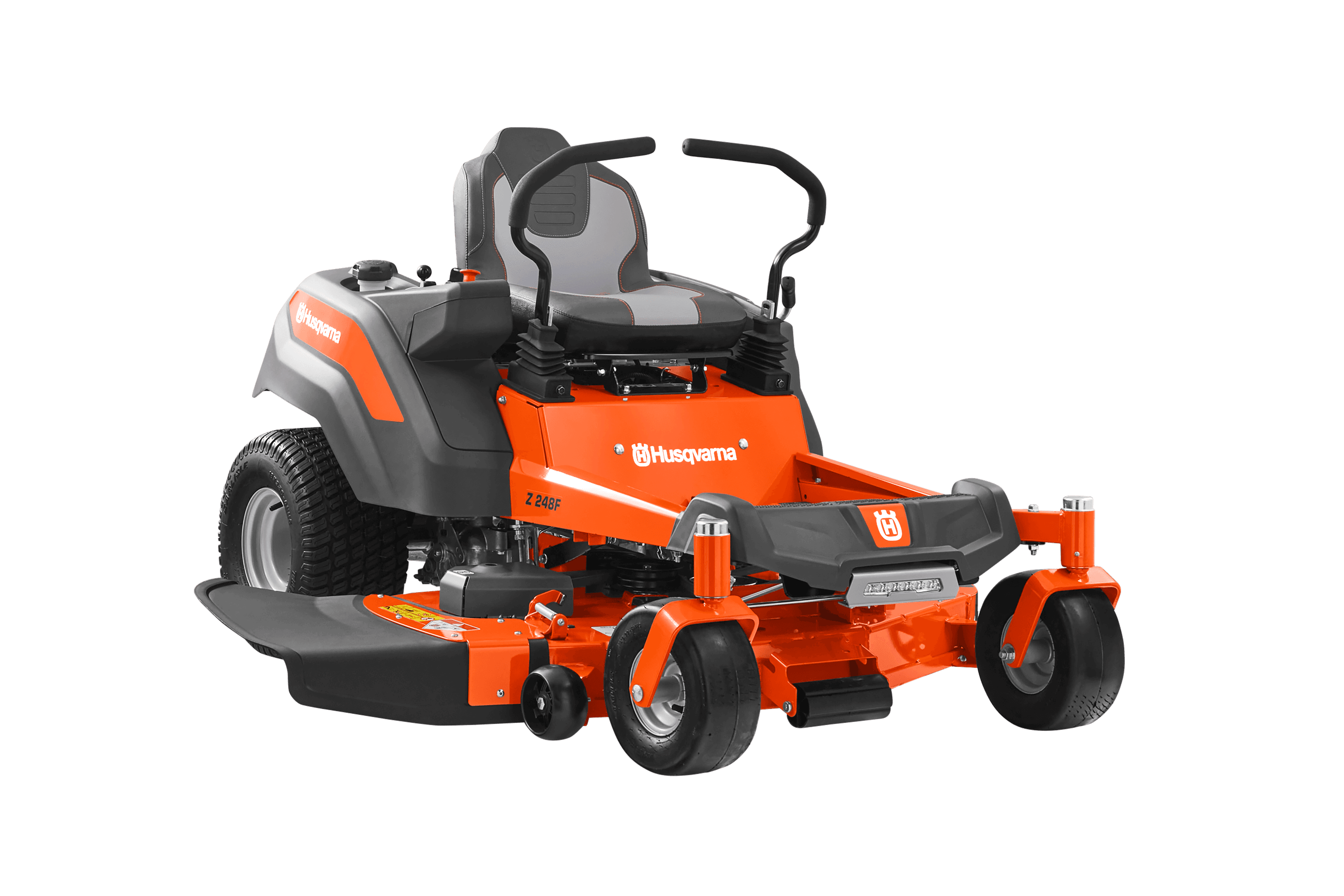

Z248F

$9,699.00Rec. retail price incl. GST SKU: 970458901
  • Cutting width122 cm
  • Engine nameFR Series

Product description

Performance and style hit the grass running with the all new Z248F Zero Turn Mower. Cutting edge design, proven performance and new innovative features combine to make lawn maintenance an event instead of a chore.

5-year warrantyFinance options

Product Information

Features (14)

Specially-designed 48 in. deck built for superior cutting performance whether discharging, bagging or mulching image

ClearCut™ Fabricated Deck

Specially-designed 48 in. deck built for superior cutting performance whether discharging, bagging or mulching

Built for durability with sealed ball bearings for long lifetime. image

Cast Iron Blade Housings

Built for durability with sealed ball bearings for long lifetime

Brake automatically engages and disengages as steering levers are moved in and out image

Automatic Park Brake

Brake automatically engages and disengages as steering levers are moved in and out

The deck lift system is spring assisted for ease of use and conveniently located within easy reach of the operator. image

Convenient Deck Lift

Spring Assisted Deck Lift System

Lasts longer with reduced maintenance thanks to zero-turn specific features image

Premium Integrated Transmission

Lasts longer with reduced maintenance thanks to zero-turn specific features

Illuminates a 50% larger area than traditional incandescent lights image

LED Headlights

Illuminates a 50% larger area than traditional incandescent lights

Quickly and easily access mower controls image

User-Friendly Controls

Quickly and easily access mower controls

Quick access to cutting deck for easy maintenance and clean-up image

Removable Foot Plate

Quick access to cutting deck for easy maintenance and clean-up

The footrest area incorporates generous non-slip surfaces for safe and comfortable use. image

Anti-slip foot area

Anti-slip foot area

The integrated front guard/ bumper offers bold styling while protecting the nose of the unit.  An optional bright LED headlight kit can easily be added, providing improved visability in dark conditions. image

Bumper

Bumper

The robust frame and casters ensure durability and reduced chassis flex. image

Rugged frame and casters

Rugged frame and casters ensure durability

The rear guard protects the engine from impact as well as limits access to hot surfaces for safety. image

Rear engine guard

Rear engine guard

Fully pressure-lubricated, two- cylinder Kawasaki engine with oil pump and oil filter. Powerful and quiet. image

Kawasaki engine

Delivers smooth, quiet and reliable power with heavy-duty components for a long life

Rubber bellows prevent debris and moisture from entering the control system image

Dust protection

Dust protection

Specifications

Art No: 970458901
Cutting width122 cm
Output shaft power17.2 kW
Cylinder displacement726 cm³
Weight (complete product w/o side packed articles)269.89 kg
Fuel tank volume13.25 l
Sound pressure level at operators ear80 dB(A)
Power rating1715 W
Base machine, height101.6 cm
Base machine, length190.5 cm
Base machine, width111 cm
Base machine, width (chute down)152.4 cm
Base machine, width (chute up)127 cm
Battery capacity18 Ah
Battery pack weight7.03 kg
Battery voltage12 V
Blades3 pcs
Blade-tip speed93.98 m/s
Clutch rating117.96 Nm
Cutting height max101.6 mm
Cutting height min38.1 mm
Cutting width, max121.92 cm
Cutting width, min121.92 cm
Deck thickness3.4 mm
Fuel consumption315 g/kWh
Fuel tank volume3.5 gal (US)
Horsepower17.15 kW
Oil capacity2.1 l
Productivity10117.14 m²/h
Pump displacement10 cm³
Sound power level, guaranteed (LWA)110 dB(A)
Sound power level, measured110 dB(A)
Speed forward max10.5 km/h
Speed forward min0 km/h
Speed reverse max5.23 km/h
Tyre size, front Diameter11 in
Tyre size, front Width6 in
Uncut circle0 cm
Wheel/rim size, front Diameter5 in
Wheelbase119 cm
